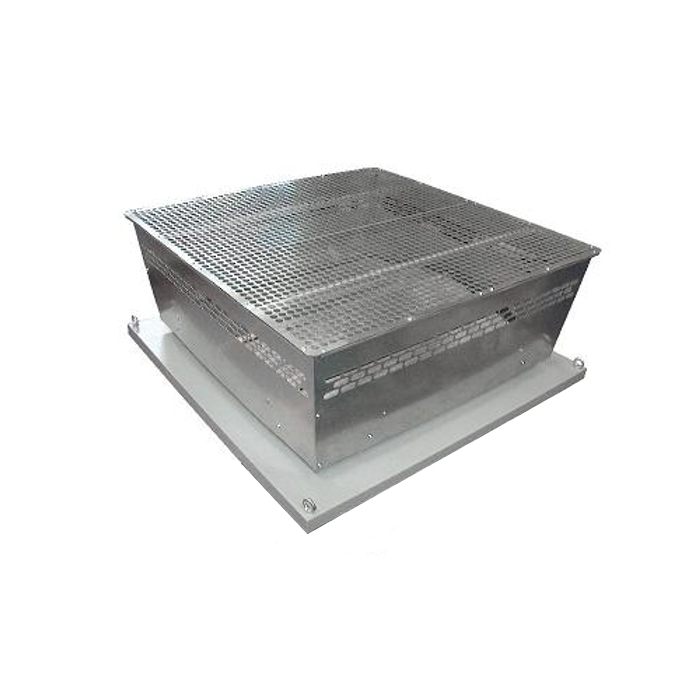

Dynair TAV vertical discharge axial conveyors

TAV conveyors are desgined to be installed in pairing with CC or CC-HP ducted axial fans, to allow the roof air extraction in vertical discharge mode. They are suitable for direct or ducted ventilation. The shutter is designed to prevent rain from entering, and reduce heat loss when the fan is not in use. The lateral holes help the air exit in case of obstruction of the upper guard. The range consists of 6 sizes, suitable for ducted axial fans from 800 to 1400mm in diameter. TAV conveyors (not included in the certification EN 12101-3) can also be fitted with CC-HT fans, for smoke extraction in case of fire.

CATALOGUE

Category:

Construction:

  • Outer conveyor with epoxy painted steel sheet base and with vertical panels made from galvanized steel sheets
  • Double wing aluminium gravity shutters, with acoustic insulation
  • Coupling plate to the fan in epoxy painted steel sheet
  • Weatherproof outlet protection guard, compliant with EN ISO 12499 standards

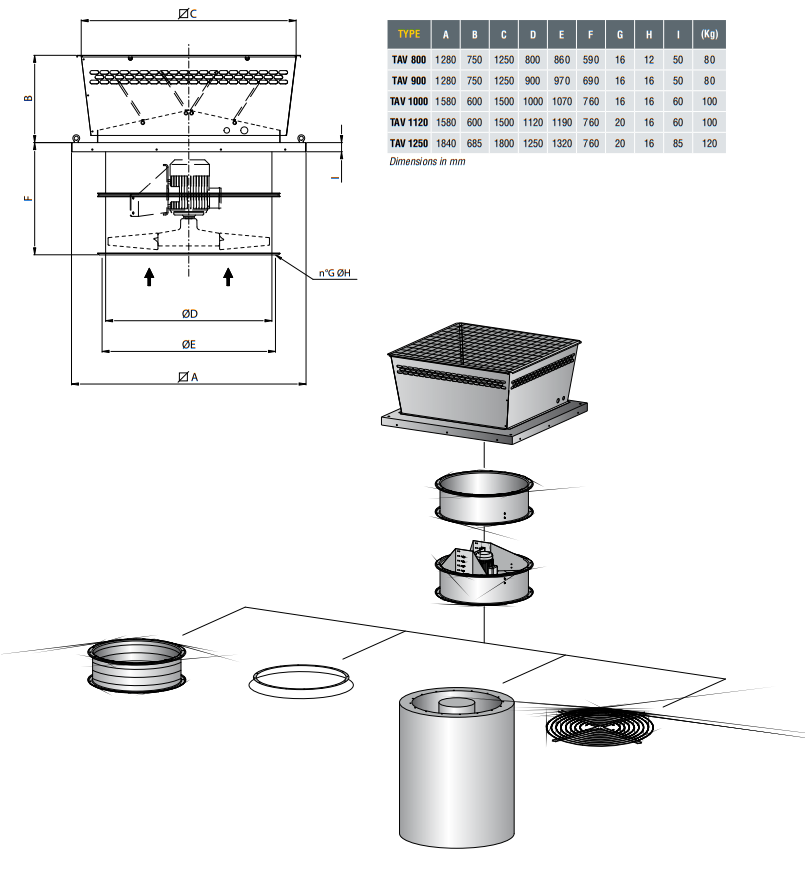

TAV conveyors are suitable to be installed with the following accessories of the CC range:

  • Long casing extension (CCpro)
  • Intel/Outlet cone (CCbo)
  • Flexible connectors (CCga)
  • Protection guards (CCr/CCrc)
  • Flat or collar flanges (CCf/CCfc)
  • Silencers (CCsa/CCsb)
  • External terminal box (mounted on fan’s casing)

For further details, feel free to contact KOMPEL Kft.
