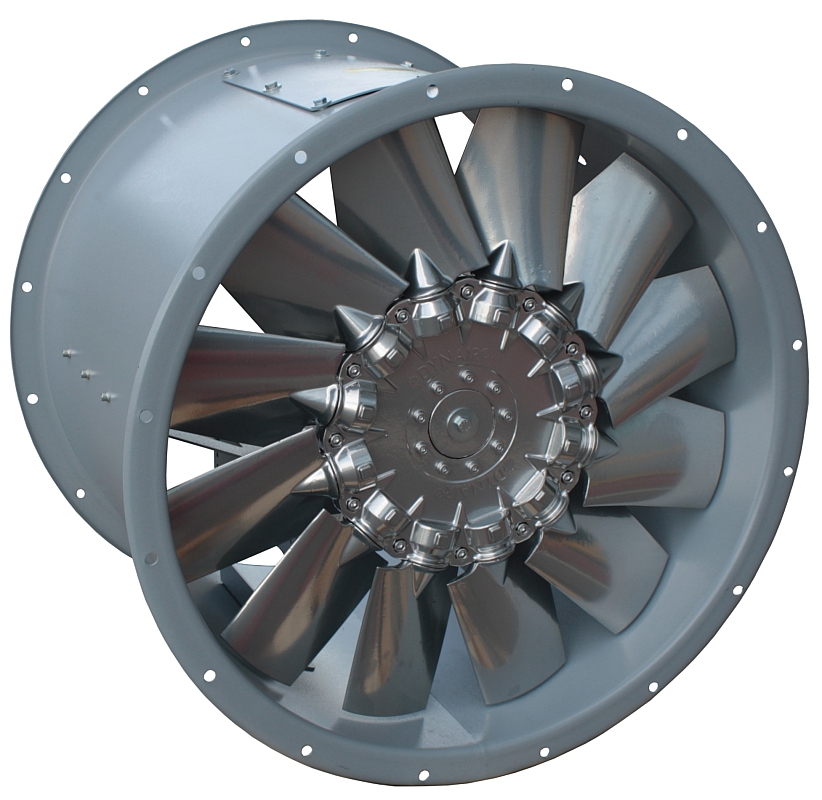

Dynair TA-HP high performance ducted axial fan

TA-HP fans are particularly long-lasting, robust, and provide outstanding performance, thanks to the aerofoil profile blades, along with the aerodynamically optimized design. The long casing construction allows for easy installation. They are available in a wide variety of configurations; offering fans with 6, 9, or 12 blades, measuring between 400 and 1600mm in diameter, available with 2,4,6 or even 8 pole motors. This series of fans are suitable for running in temperatures between -20°C and +70°C. The ErP conformity is defined in phase of selection via Blowdyn 2.0 software or by contacting Kompel Kft directly.

This product complies with the European Union’s ecodesign directive.
ErP Directive compliant fans

CATALOGUE

ACCESSORIES

Categories: ,

Construction:

  • Long casing made from steel sheet, painted in epoxy, equipped with fixing flanges, manufactured in compliance with the UNI ISO 6580-EUROVENT standard.
  • High performance axial impeller with aerofoil blades, made completely out of die-cast aluminium. Balanced according to ISO 1940 standard. The pitch angle of the blades can be adjusted when stationary.
  • Inspection door.
  • Asynchronous three-phase IE2 motors,CE marked, with IP55 protection and Class F insulation, compliant with the following international standards: IEC 60034, IEC 60072, EMC 2014/30/UE, LVD 2014/35/UE.
  • Impeller coupled directly to the motor.
  • Suitable for S1 service(continuous operation at constant load).

Accessories:

  • Inlet/outlet cone (CCbo)
  • Flexible joint (CCga)
  • Flat protection grid (CCr)
  • Support feet (CCst)
  • Counter flange (CCf)
  • Counter flange with collar (CCfc)
  • Cylindrical silencers with or without pod (CCsa/CCsb)
  • Roof exit kit (TAV adapter)
